| Ask Lasest Price | |
| Brand Name : | PiPO or Your Brand |
| Model Number : | IPC-10-1 |
| Certification : | UL/CE/CCC/ISO |
| Price : | Contact Us Now,For a Detailed Quotation |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000 Sets/month |
| Delivery Time : | 15-65 Days |
All sizes are optional !
Capacitive Touch/Resistive Touch/Non-Touch optional!
Many installation methods are available!
Many interfaces, adapt to different devices!
Ultra durable PCB board!
Adapt to ultra-harsh environments!
More than 30,000 hours of service life!
Support any type of OEM/ODM service!
All products have at least 12 months warranty!
Actually, we have developed a touch screen device which has a broad
range of industrial applications. such us
1) Smart home control
2) Smart touch panel for smart appliance
3) Smart OBD diagnostic device for cars, smart display panel for
rear seat of the car,
tablet PC with TOF camera for driving monitoring
4) Smart health care devices for doctor and nurse in hospital,
smart senior care tablet PC, smart health care for kids
5) Smart display with AI
6) Different size display open frame for smart scooter smart bike
and smart treadmill
7) Smart big touch screen for ad players, POS devices for bank and
mall.
8) Education tablet PC with keyboard and stylus pen for students
and other ODM projects too numerous to list.
PC specification | |||||
CPU | RK3288 28nm Quad core ARM Cortex A17 1.8 GHz(RK3399,RK3568) | ||||
Memory | 2GB DDR3 or 4GB | ||||
Nand Flash | EMMC Flash 16GB,/32GB / 64GB | ||||
GPU | Quad-Core Mali-T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1,
OpenCL1.1 and Renderscript , Directx11, 2D GPU support 8Kx8K input,4Kx4Koutput | ||||
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out | ||||
Video playback | Support wmv,avi,flv,rm,rmvb,mpeg ,ts,mp4 | ||||
Image Format | Support BMP,JPEG,PNG,GIF | ||||
Network support | 3G, Ethernet, WiFi/Blue-tooth 4.0, wireless peripheral expansion | ||||
Wireless Network | WIFI optional | ||||
I/O Interface | USB ,Lan(RJ45),COM(RS232), SIM /TF slot ,HDMI/Audio OUT/POWER
DC,WIFI,Blue-tooth | ||||
Opetation System | Support above Android 4.4-6.1 operation system | ||||
LCD panel | |||||
Panel size | 10.1 Inch | ||||
Resolution | 1280*800 | ||||
Brightness (cd/m²) | 300 cd/m2 | ||||
Response time | 15ms | ||||
Contrast ratio | 800:1 | ||||
View angle | 80°/80°/60°/80° (R/L/U/D) | ||||
Touch panel | |||||
Touch Type | 10 points projective Capacitive touch | ||||
Touch Interface | USB | ||||
Response time | <8ms | ||||
Transmittance | 75-85% | ||||
Power Supply | |||||
External Power Supply | AC 100 - 240V | ||||
Working voltage | DC 12V | ||||
Power consumption | ≤18W | ||||
Operating Environment | |||||

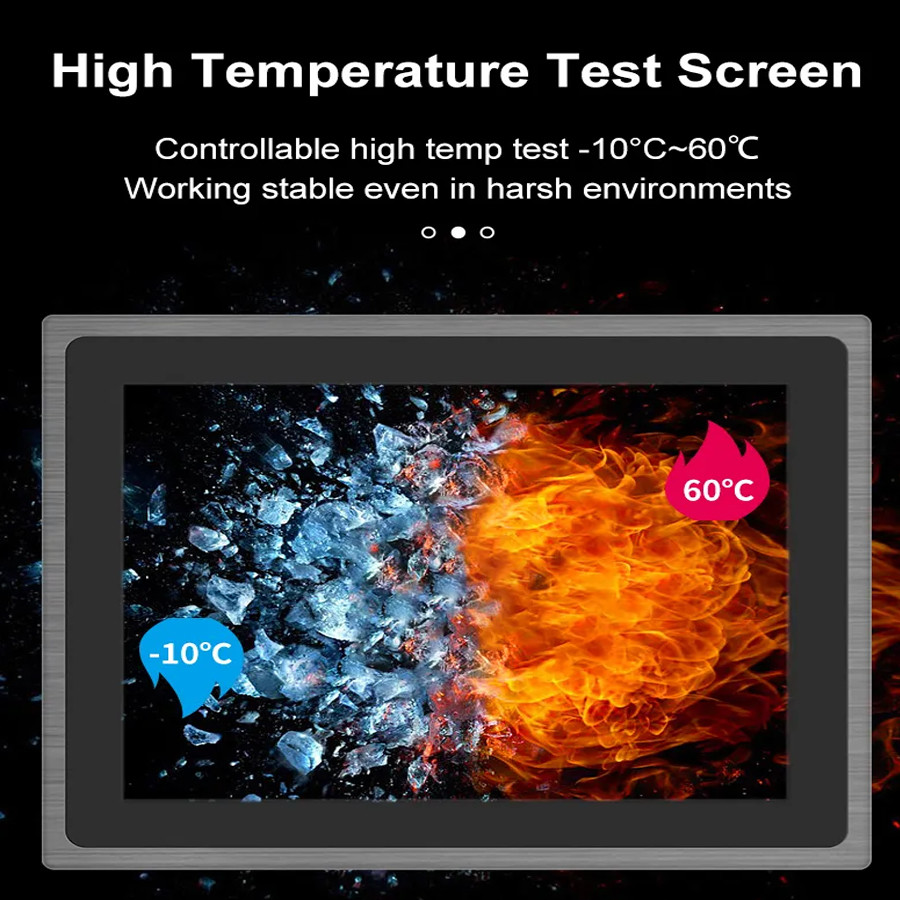

Temperature range | operating: -10 to 60°C, storage :-20 to 70°C | ||||
Relative humidity | 5%~95% @ 40° C, non-condensing | ||||
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | ||||
Packing Details | |||||
Accessories | Power adapter, Wifi antenna | ||||
Other | |||||
Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm | ||||
2) provide Floor standing to support the PC | |||||
Certification | CE, FCC,ROHS | ||||
Warranty | 1 year warranty for hardware | ||||
Q: Can you support to design the tablet pc smartphone laptop
outlook?
A:Yes, we can custom with your reference and using scenario
description.
Q: Do you support the product software(SW) development?
A: Normally we do system and driver level development,
Application-level development will be done by Client or 3rd party
software(SW) developer assigned by clients.
Q: Which OS can you support development?
A:Yes, we can support tablet PC & smartphone custom OS based on
Android OS ,Windows OS ,Linux OS, Ubuntu OS.
Q: Can you support to remove the battery from tablet PC?
A:Yes, sure, we can support tablet PC or smartphone removed
battery, removed the camera, shipment without the device case, as
well as we can support add the POE,USB Type C, DC IN, HDMI
interface on the smart device.
Q: Can you support SKD service?
Q: Yes, we can support SKD (software kit development) service for
customers.
Q: Do you have any experience with smart home projects?
A: Yes,we have rich experience with quite a lot smart home iOT
cases. Tuya, Google assistant work with Alexa, Zigbee, Zwave, LoRa,
etc.
|
|
